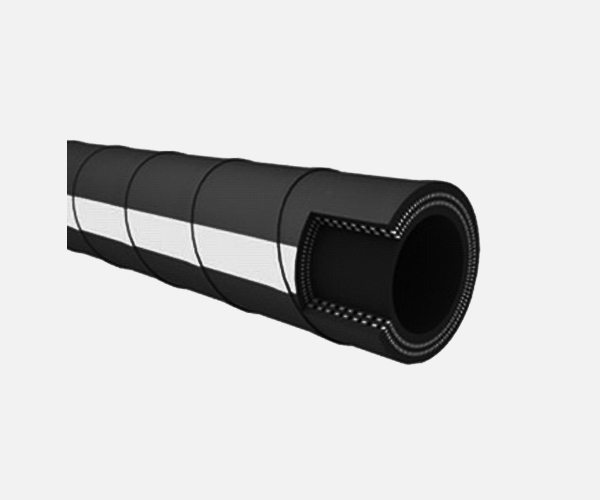

Application– For use in compressor in industry, construction, shipyard and wagon in tough operating conditions.
Lining – Modified Natural Rubber Compound
Reinforcement– One/Two High Tenacity Synthetic Yarn Braids
Cover – Modified Natural Rubber Compound Resistant to Abrasion and Agencies
Standard – Exceeds IS 446 (type-ll)
| Nominal Bore |
Mean Outer Cover Diameter |
Maximum working Pressure |
Minimum brust Pressure |
| Inch |
mm. |
| 1/4 |
6.3 |
| 5/16 |
8.0 |
| 3/8 |
10.0 |
| 1/2 |
12.5 |
| 5/8 |
16.0 |
| 3/4 |
20.0 |
| 1 |
25.0 |
| 1-1/4 |
31.5 |
| 1-1/2 |
38.0 |
| 2 |
50.0 |
|
| mm. |
| 13.5 |
| 15.5 |
| 18.0 |
| 22.5 |
| 26.0 |
| 30.0 |
| 36.5 |
| 43.5 |
| 50.5 |
| 66.5 |
|
| Psi |
Bar |
| 200 |
14 |
| 200 |
14 |
| 200 |
14 |
| 200 |
14 |
| 200 |
14 |
| 200 |
14 |
| 200 |
14 |
| 200 |
14 |
| 200 |
14 |
| 200 |
14 |
|
| Psi |
Bar |
| 900 |
61.2 |
| 900 |
61.2 |
| 900 |
61.2 |
| 900 |
61.2 |
| 900 |
61.2 |
| 900 |
61.2 |
| 900 |
61.2 |
| 600 |
46.0 |
| 600 |
46.0 |
| 600 |
46.0 |
|
