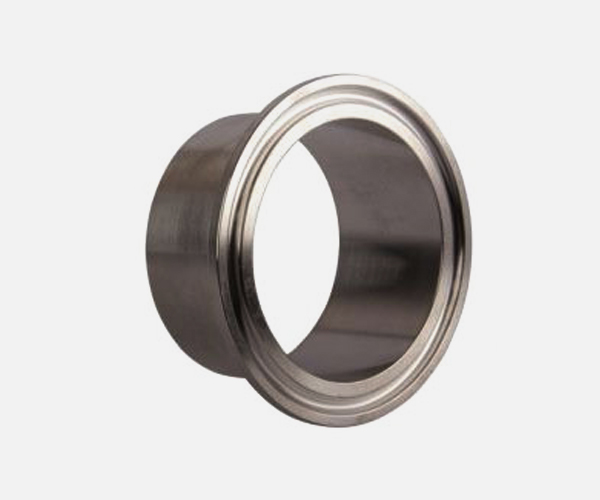

Hydfit Ferrules
| Series | Tube O.D. | d 3 | I | Part No |
| Light | 6 | 6 | 8.5 | D 6 — L |
| L | 8 | 8 | 8.5 | D 8 — L |
| 250 | 10 | 10 | 9.0 | D 10 — L |
| bar | 12 | 12 | 9.5 | D 12 — L |
| 15 | 15 | 9.5 | D 15 — L | |
| 160 | 18 | 18 | 10.0 | D 18 — L |
| bar | 22 | 22 | 10.5 | D 22 — L |
| 100 | 28 | 28 | 10.5 | D 28 — L |
| bar | 35 | 35 | 12 | D 35 — L |
| 42 | 42 | 12 | D 42 — L | |
| Heavy | 6 | 6 | 9.5 | D 6 — H |
| H | 8 | 8 | 9.5 | D 8 — H |
| 630 | 10 | 10 | 10.0 | D 10 — H |
| bar | 12 | 12 | 10.0 | D 12 — H |
| 14 | 14 | 9.5 | D 14 — H | |
| 400 | 16 | 16 | 9.5 | D 16 — H |
| bar | 20 | 20 | 12.5 | D 20 — H |
| 25 | 25 | 13.0 | D 25 — H | |
| 250 | 30 | 30 | 13.5 | D 30 — H |
| bar | 38 | 38 | 13.5 | D 38 — H |
