Gimbal Expansion Joints

Gimbal Expansion Joints

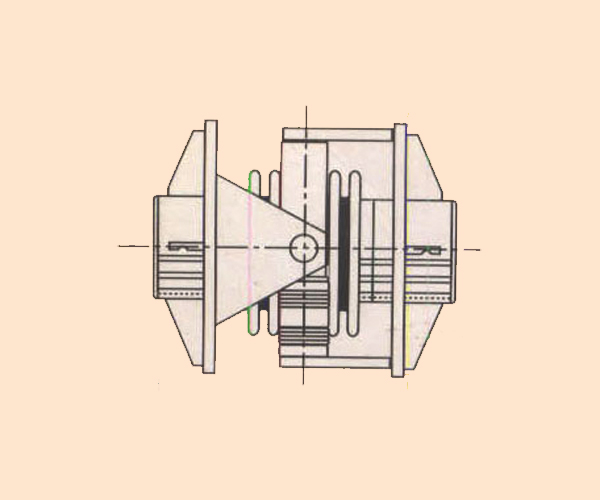

The gimbal expansion joint is basically the same as the hinge type, except that instead of being limited oto deflection in only one plane, it can accept bending or angulation in any plane. It contains two sets of hinge pins or pivots, the axis of each set perpendicular to the other. Each set of pins is connected to each other with a central gimbal ring, in much the same way that a universal joint on an automobile works.

Features:

• Absorbs angular rotation.
• Eliminate pressure thrustforcesbr>
• Transmit external loads
• Minimum guiding required
• Prevent torsion on bellows
• No main anchors required
• Low forces on piping system
