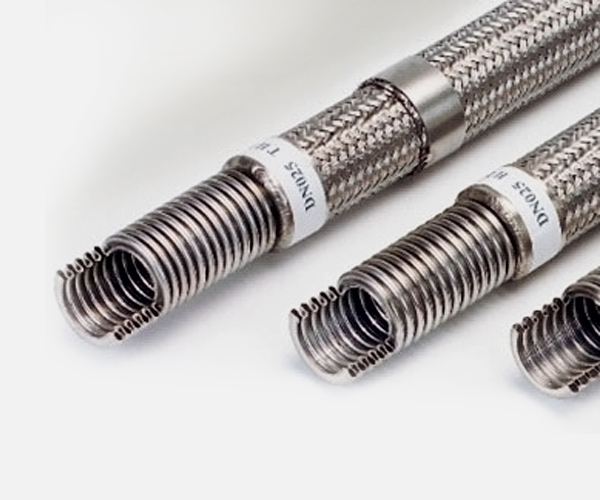

Stainless Steel Flexible Hose

Construction:
Flexible metal tubing ,single continuous wall with close pitch parallel corrugations,hydraulically formed From a butt-welded tube.

Materials:
Austenitic stainless steel AISI304,AISI321, Other materials can also be given (AISI316,AISI 3161) against specific orders.

Pressure Range:
Hoses are recommended for use as per chart given on below:

Braids:
Hoses can be provide with one/two braids of stainless steel AISI304 wire depending upon the Pressure rating. Ceramic fibre/asbestos braiding can also be provide in case of high outside temperature For specific applications. Armouring may also be done to protect the hose from outside.

End Fittings:
Fittings made of mild steel,stainless steel 304,316,316L,brass,copper,etc are provided as per customers requirements.

Applications:
Suitable for all applications of conveyance of fluids or gases where problems of pressure, Vacuum, temperature, vibrations and corrosions exist. These are ideal for applications under high temperature Zones.

Advantages of Stainless Steel Flexible Metal Hoses:
• Suitable for wide temperature range (-270ͦ oC To 700 oC)
• Compensates for thermal expansion & contraction in piping system.
• High physical strength
• Fire resistant
• Longer life
• Good corrosion characteristics
• Resistant to abrasion, penetration and damage
• Connects misaligned rigid piping
