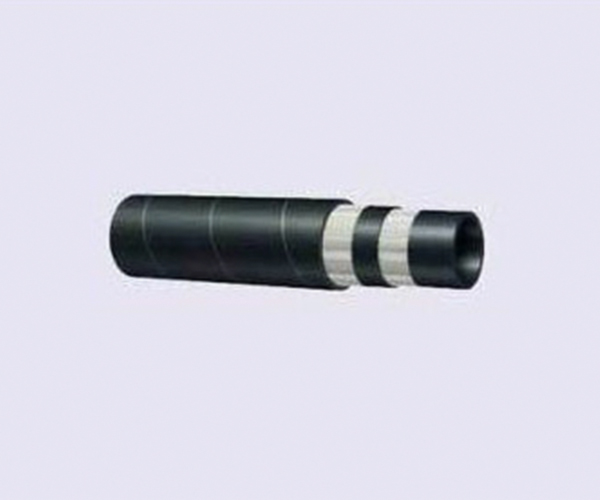

Hydraulic Hoses SAE 100 R3

APPLICATION
Low Pressure and low impulse hydraulic Lines 30 to 110 bar and use with Petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural, Construction & Material handling equipments and machineries / systems.

SAE 100 R3

APPLICATION
Low Pressure and low impulse hydraulic Lines 30 to 110 bar and use with Petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural, Construction & Material handling equipments and machineries / systems.

Dash DN Hose I.D.
(Nom.)		 Hose O.D.
(Nom.)		 Working Pressure Min. Burst Pressure Min. Bend Radius
-3 5
-4 6
-5 8
-6 10
-8 12
-10 16
-12 20
-16 25
-20 32
(In) (mm)
3/16 4.8
1/4 6.4
5/16 8.0
3/8 9.5
1/2 12.7
5/8 16.0
3/4 19
1 25.4
1.1/4 31.8
(In) (mm)
0.47 12.0
0.52 14.0
0.67 17.0
0.75 19.0
0.92 23.4
1.06 27.0
1.24 31.5
1.49 37.8
1.73 44.0
(psi) (Bar)
1600 110
1300 90
1230 85
1160 80
1010 70
870 60
800 55
580 40
440 30
(psi) (Bar)
6400 440
5200 360
4920 340
4640 320
4040 280
3480 240
3200 220
2320 160
1760 120
(mm) (In)
75 3.00
75 3.00
100 4.00
100 4.00
125 5,00
140 5.60
150 6.00
200 8.00
250 10.00
